Specifications:

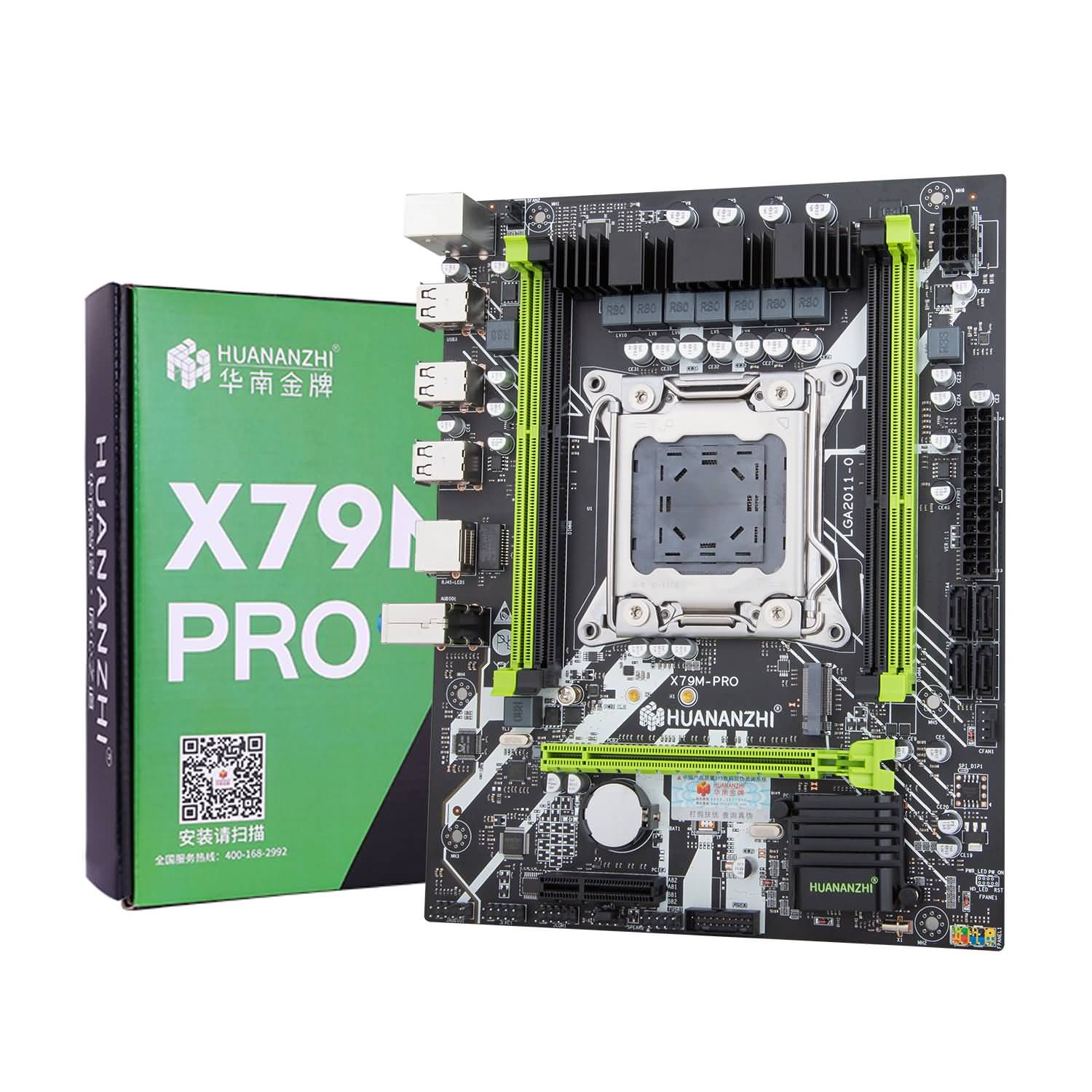

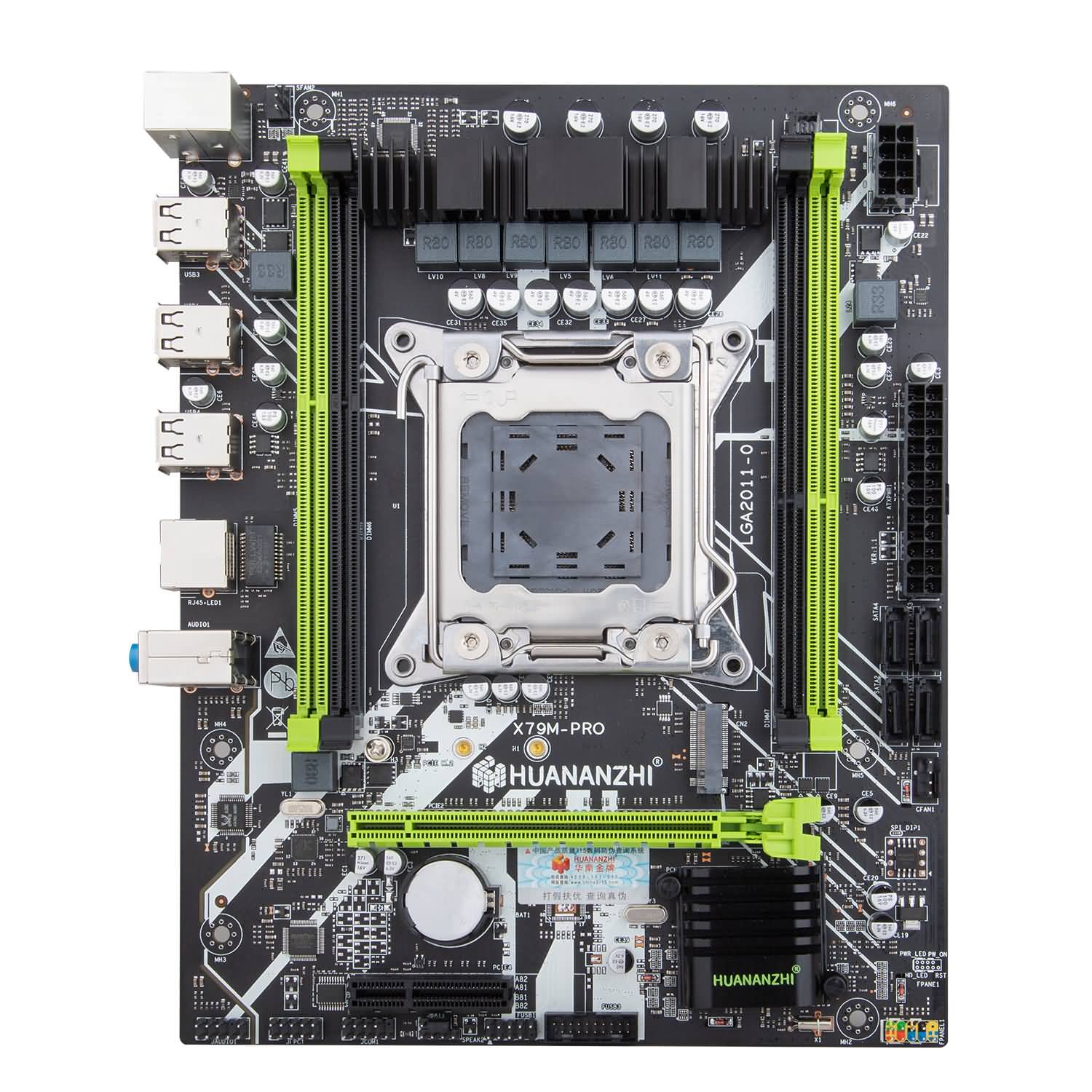

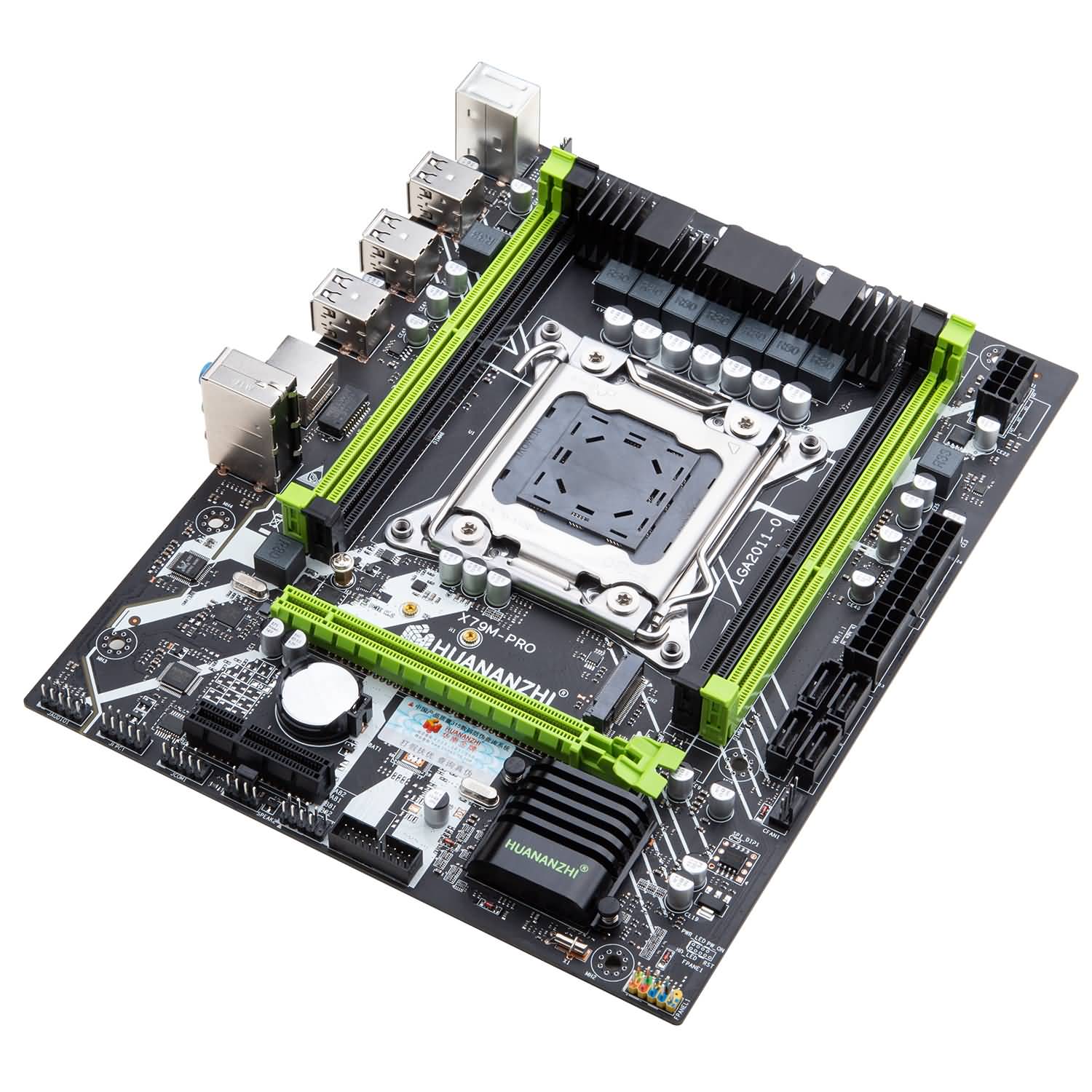

Model：HUANANZHI X79M PRO Motherboard
CPU Socket：Support Intel 2011 Processors
Memory Socket：4*DDR3 Memory Socket（Please note: green is the main slot, black is the secondary slot, you need to install the main slot first）
Memory Standard：4 slots DDR3 1866/1600/1333 MHz
SATA：4*SATA2.0 Interface

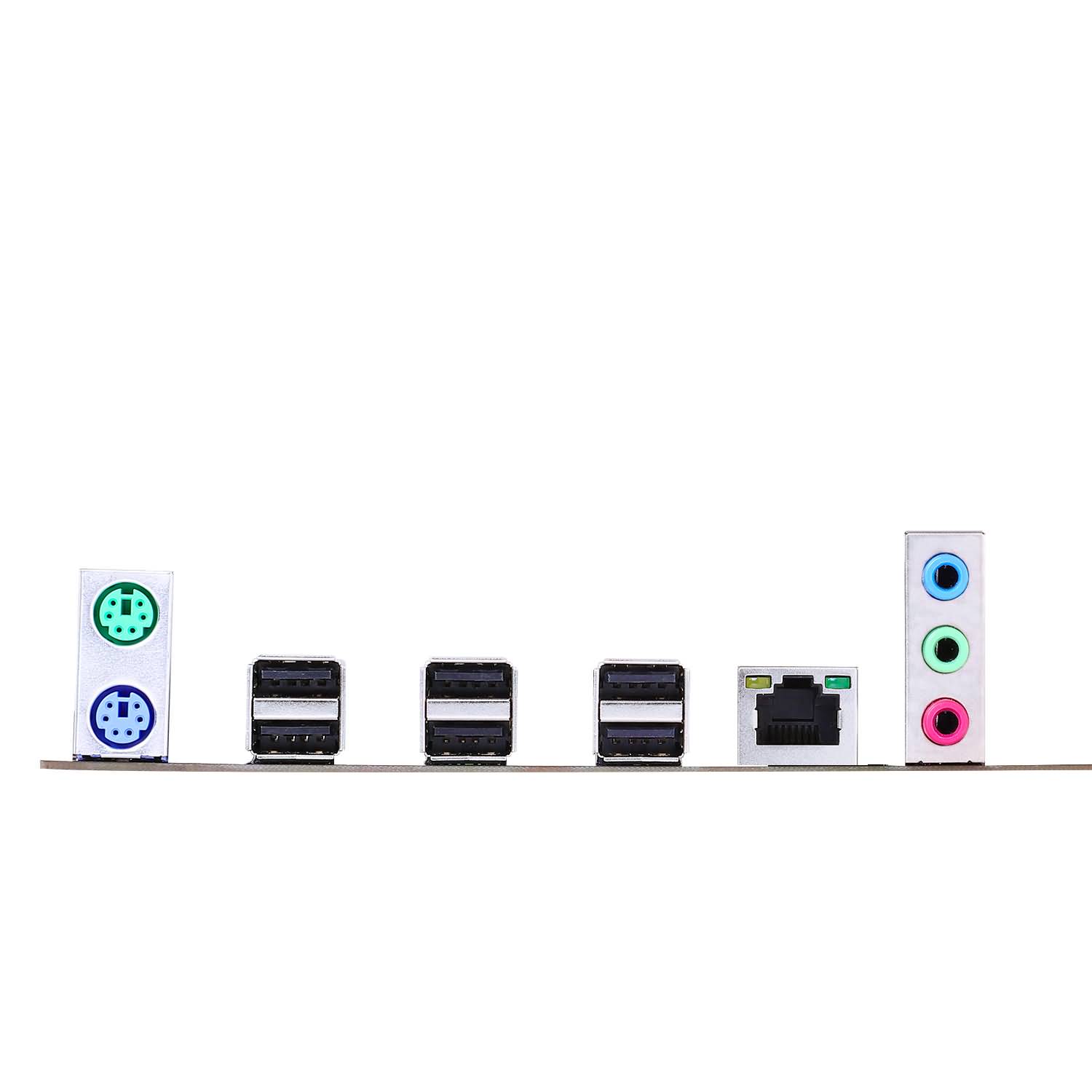

Extended interface：IO: 1*PS/2 Mouse / keyboard interface. 6*USB2.0. 1*Gigabit Ethernet Card. 3*3.5MMAudio interface;Expansion pin: 1*9pin USB2.0; 1*19pin USB3.0(The rate of 2.0); 1*Front audio output pin
Expansion Slots：1*PCI Express3.0X16, 1 PCI ExpressX4, 1*M.2 NVME interface(X4 3.0)
Soud Track：ALC662 5.1 Sound Track
Network Interface：Gigabit Ethernet Card
Power interface：24pin+4pin
Fan interface：2
РCВ layer：4 layer, 7Phases
Dimension ：240*185MM M-ATX

CPU:

Processor Series: Xeon E5 2620V2(6 cores/12 threads)
Main frequency: 2.1GHz
Socket type: LGA 2011
3rd level cache: 15MB
Technology: 22nm
Power consumption: 80W
Note:
1: CPU is used, condition good, 1 year warranty
2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.
3: All CPU are strictly tested before shipping

Note:

1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5:We show photos of motherboard, pictures are for reference only, subject to our available products.

Note:

For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！

Note:

Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!

We promise to test and deliver the order you submitted within 24 hours

Before Packaging

Before Packaging

What in the package?

motherboard+cooler adapter+SATA cable+metal back shield+driver disc+user manual
